DeFelsko Zero Plates

Zero Plates

Manufacturer: DeFelsko

Part #: STDZXXXX

Description: Discover the DeFelsko Zero Plates, essential tools for precise calibration! • Uncoated precision machined steel or aluminum (6061 - T6) for reliable performance. • Available in a variety of plate sizes to meet diverse needs. • Ensure accurate measurements for your magnetic and eddy current gages.

What are zero plates used for?

Use with Certified Coated Metal Standards
Coated Metal Standards for magnetic and eddy current gages usually include an uncoated zero plate. The first gage measurement is taken on the zero plate to verify that the gage measures zero correctly. If not, electronic gages can usually be adjusted to '0' on the zero plate. After this adjustment is performed, the gage should measure within tolerance on the coated standards.

Use with certified and non - certified plastic shims and polystyrene blocks

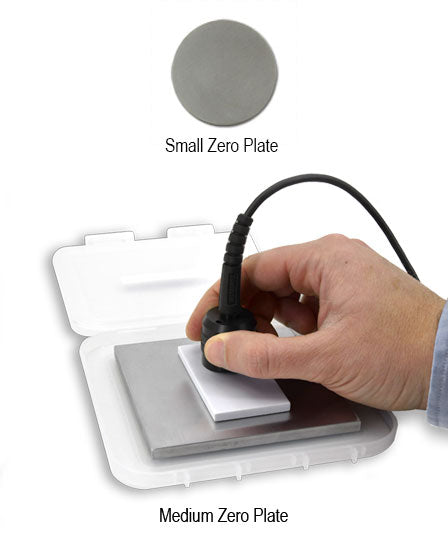

A zero plate provides a convenient base onto which plastic shims and polystyrene blocks can be placed for verification purposes. Check zero, adjust to '0' if necessary, then place the shim/block on the zero plate and measure.

Substitute as a base for materials without a substrate
Zero plates can be used to provide a substrate where none exists. Large sheets of material such as paper, plastic, fabric and rubber can be measured with a coating thickness gage by placing the material over the zero plate. This is useful when the measured item is too large to access with a micrometer or other device. For example the screen printing industry uses zero plates to measure the thickness of the'substrate' being printed.

Order Guide -

Type:	Plate Size:	Ideal For:
Steel	Small Disk Diameter: 38 mm (1.5')	PosiTector 6000 F, FS, FRS, FN, FNS, FNRS, FXS, FNDS, F microprobes PosiTest DFT Ferrous Combo
Aluminum	Small Disk Diameter: 38 mm (1.5')	PosiTector 6000 N, NS, NAS, NRS, FN, FNS, FNRS, FNDS, N microprobes PosiTest DFT Combo
Steel	Medium Square 100 mm x 100 mm x 6 mm (4' x 4' x 0.25')	PosiTector 6000 FT, FTS, FTRS, FNTS, FKS, FHXS probes
Aluminum	Medium Square 100 mm x 100 mm x 6 mm (4' x 4' x 0.25')	PosiTector 6000 FNTS, NKS probes
Steel	Large Square 180 mm x 180 mm x 6 mm (7' x 7' x 0.25')	PosiTector 6000 FLS, FJS, FNGS probes

The DeFelsko Zero Plates are a must - have for professionals working with magnetic and eddy current gages. These plates are made of either precision machined steel or aluminum (6061 - T6). You can choose from different sizes like small disks (38 mm diameter), medium squares (100 mm x 100 mm x 6 mm), and large squares (180 mm x 180 mm x 6 mm). They are used for calibrating gages with certified coated metal standards, working with plastic shims and polystyrene blocks, and providing a substrate for large materials without one. Ideal for those in industries such as screen printing and any field where accurate coating thickness measurement is crucial.
