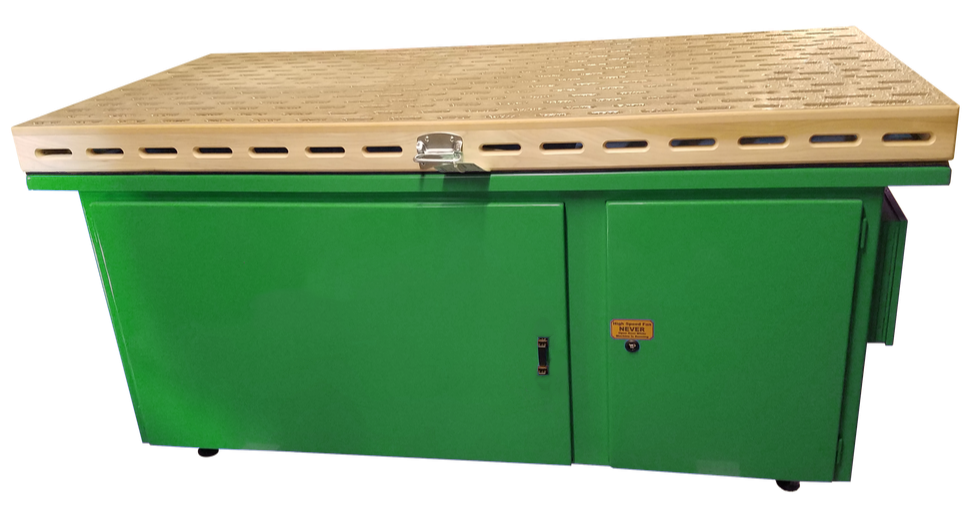

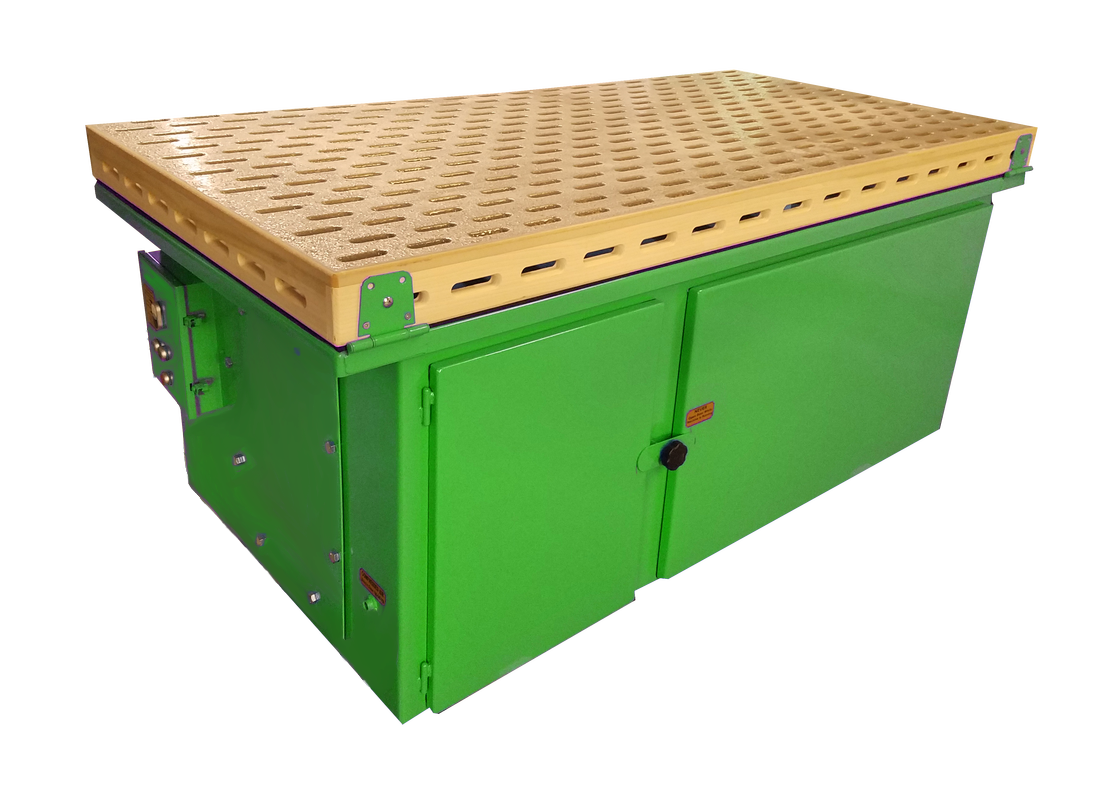

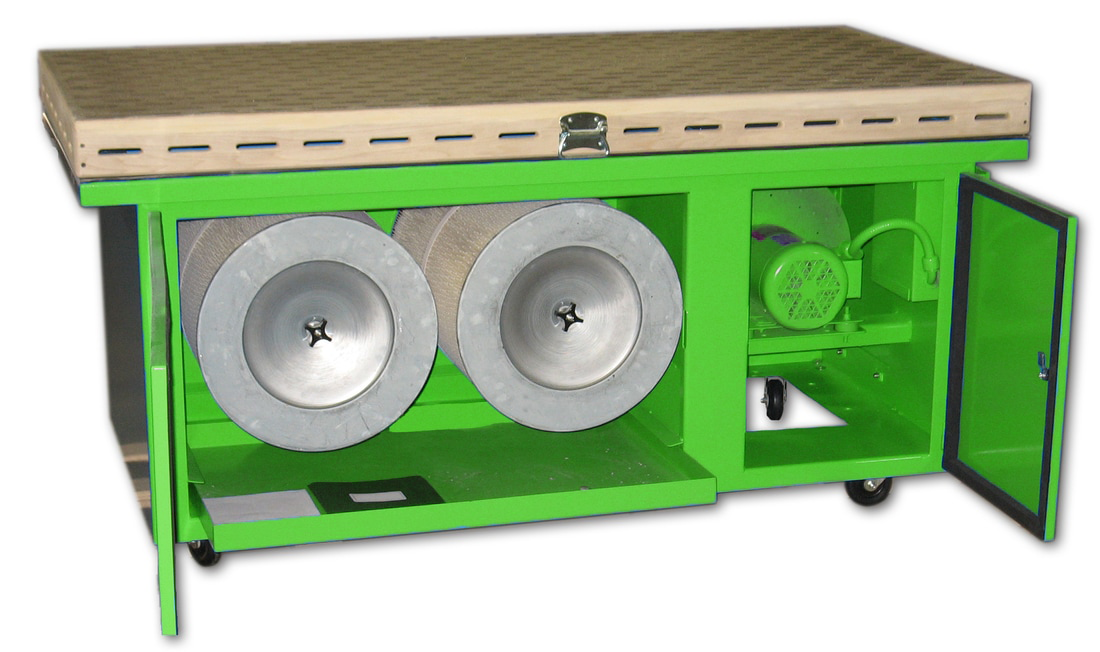

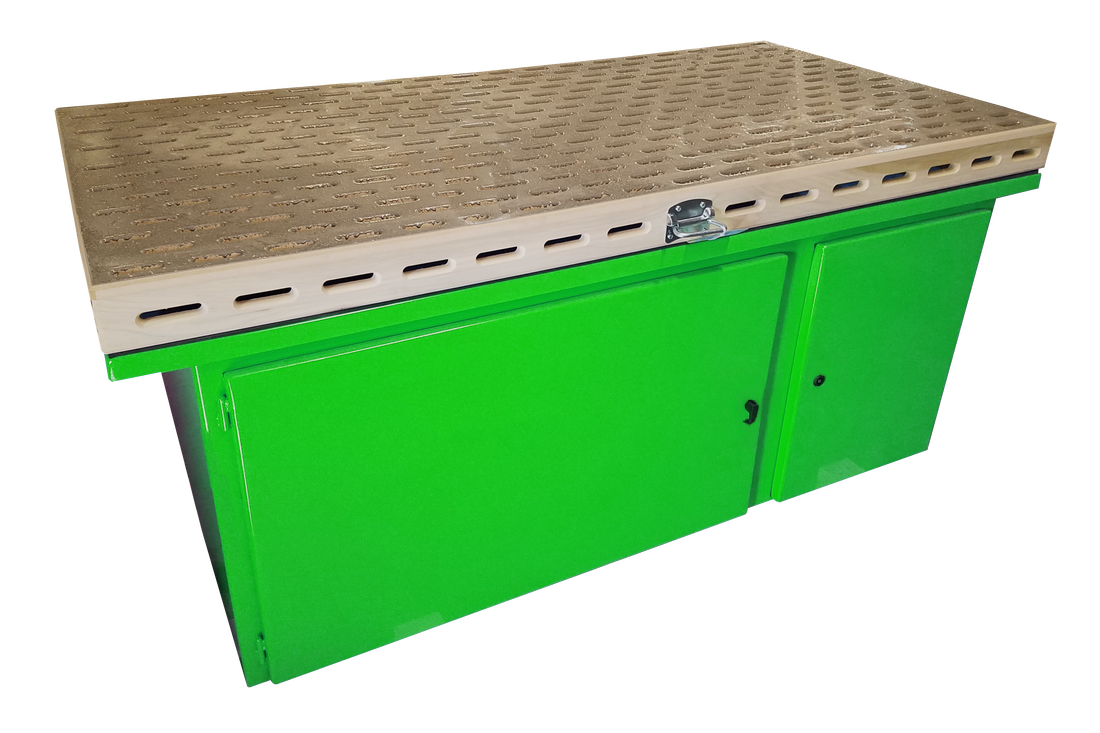

Denray Downdraft Cartridge Filter System Model 3672B

Denray 3672B: Your Ultimate Downdraft Cartridge Filter Solution!

Manufacturer: Denray

Part #: 3672B

Description: Denray Machine's cartridge filter systems are a top - choice in the market.

• 99.95% Capture Rate: Clean air at .5 micron with 80/20 cartridge filters.
• Jet Pulse Cleaning: Effortlessly clean with a push - button.
• Versatile Use: Ideal for sanding plastics, woods, and finishing materials.

This model is perfect for medium - sized jobs and a hit in cabinet shops where two operators can use the same table. It comes standard with Denray's 'Jet Pulse' push - button cleaning, a rubber - coated top, and a magnetic starter.

• 36' x 72'
• 36' HEIGHT
• 2 HP MOTOR
• 3400 CFM
• 84 DECIBELS SOUND LEVEL

SINGLE - PHASE

• 115 VOLTAGE (17.6 AMPS)
• 220 VOLTAGE (8.8 AMPS)

THREE - PHASE

• 230 VOLTAGE (5.8 AMPS)
• 460 VOLTAGE (2.9 AMPS)
• 575 VOLTAGE (2.3 AMPS)

Additional Options:

• Explosion Proof Motor (3 Phase only)
• Light Bar
• Casters
• Auto - timer
• Muffler (reduces sound level 10 - 12 dbs.)
• 100% Spunbond Polyester Filters
• Carbon Filter Bank (odor only)
• HEPA Filter bank
• Three - sided Hinged Safety Shield
• Magnehelic Gauge
• HDPE Plastic Tabletop
• Hydraulic Height Adjustment
• Larger Motor/Fan Upgrade

Parts and Accessories:

• EO6063 - Cartridge Filters
• Automated Cartridge Filter Cleaner

FOB Mount Vernon, Missouri - You will be contacted with a freight quote or you can arrange your own freight. Forklift required at the time of delivery.

The Denray 3672B Downdraft Cartridge Filter System is great for medium - sized jobs. You can use it when sanding plastics, woods, and finishing materials. It's very popular among cabinet shops, especially when two operators need to work on the same table. This system measures 36' x 72' and has a height of 36'. It comes with a 2 HP motor and can reach 3400 CFM. The sound level is 84 decibels. It supports both single - phase and three - phase power with different voltage and amp options.
