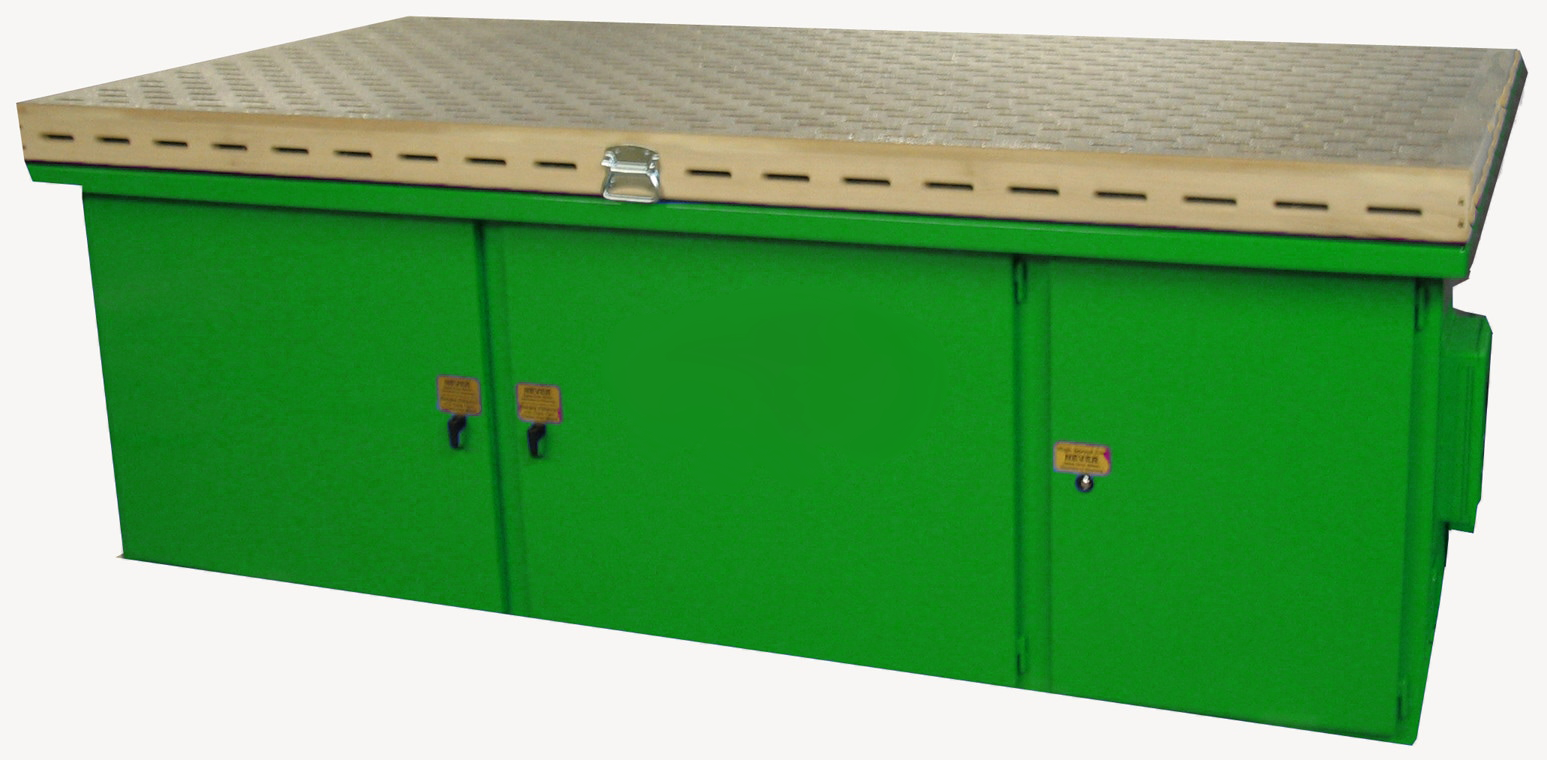

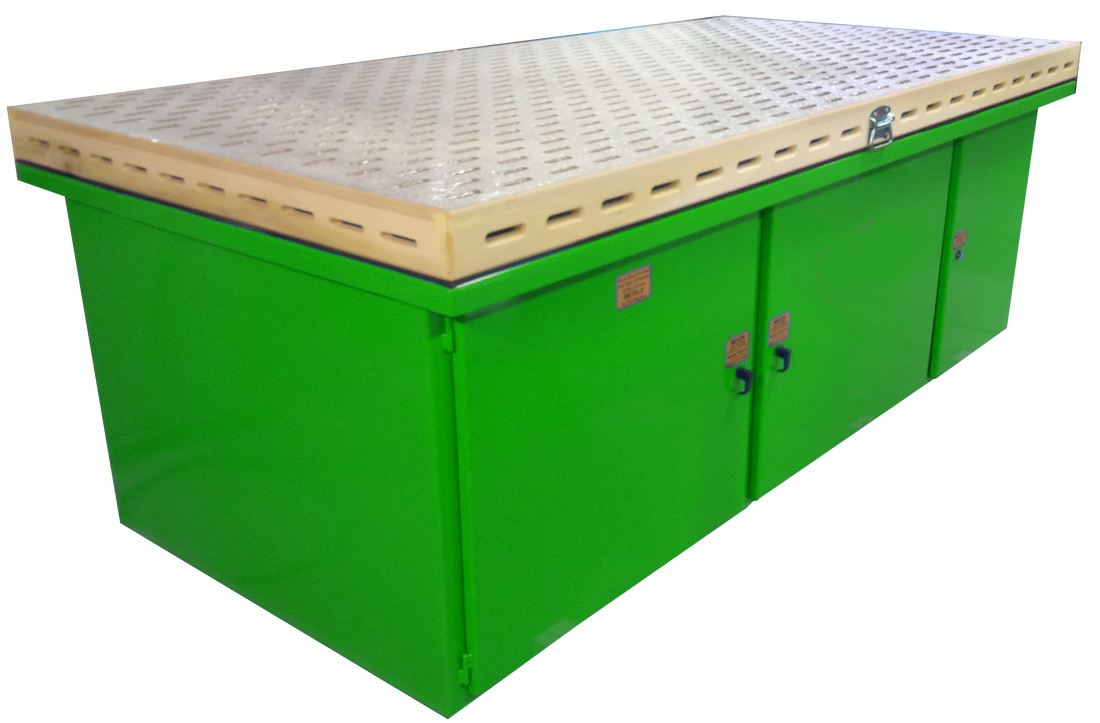

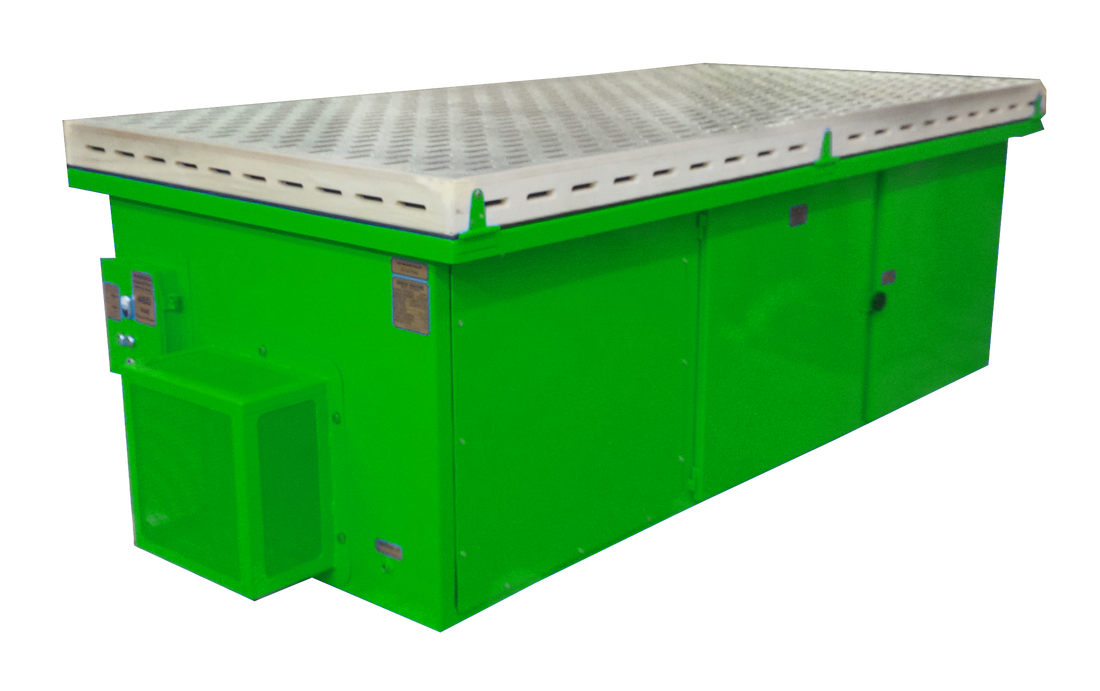

Denray Downdraft Cartridge Filter System Model 9600B

DENRAY DOWNDRAFT CARTRIDGE FILTER SYSTEMS

Manufacturer: Denray

Part #: 9600B

Description: Discover the amazing Denray 9600B Downdraft Cartridge Filter System! It's a top - notch solution for your filtration needs.

• Exceptional Filtration: With 80/20 cartridge filters, it offers a 99.95% capture rate at .5 micron, ensuring a clean working environment.

• Convenient Cleaning: Comes with 'Jet Pulse' push - button cleaning for easy maintenance.

• Versatile Sizing: Available in various dimensions to fit any job size, and this model is perfect for larger jobs and can handle multiple tasks simultaneously.

This model is ideal for larger jobs and can accommodate two or three jobs at the same time on the same table. The 9600B is one of the larger tables in Denray's push - button cleaning line. It comes standard with 80/20 cartridge filters with a 99.95% capture rate at .5 micron, a magnetic starter, and a rubber - coated top.

*Please note that the starter box on this model is on the left side of the machine.

Dimensions and Specs:

• 96' x 48'
• 36' HEIGHT
• ​5 HP MOTOR
• 4800 CFM
• ​82 DECIBELS SOUND LEVEL

Power Options:

SINGLE - PHASE

• 220 VOLTAGE (23 AMPS)

THREE - PHASE

• 230 VOLTAGE (13.4 AMPS)
• 460 VOLTAGE (6.7 AMPS)
• 575 VOLTAGE (5.3 AMPS)

Additional Options:

• Explosion Proof Motor (3 Phase only)
• Light Bar
• Casters
• Auto - timer
• Muffler (reduces sound level 10 - 12 dbs.)
• 100% Spunbond Polyester Filters
• Carbon Filter Bank (odor only)
• HEPA Filter bank
• Three - sided Hinged Safety Shield
• Magnehelic Gauge
• HDPE Plastic Tabletop
• Hydraulic Height Adjustment
• Larger Motor/Fan Upgrade

Parts and Accessories:

• Automated Cartridge Filter Cleaner

FOB Mount Vernon, Missouri - You will be contacted with a freight quote or you can arrange your own freight. Forklift required at the time of delivery.

The Denray 9600B Downdraft Cartridge Filter System is designed for workshops and industrial settings where large - scale jobs are common. It's perfect for professionals such as welders, fabricators, and industrial workers who need a reliable and efficient filtration system. The system measures 96' x 48' and has a height of 36'. It runs on a 5 HP motor with a 4800 CFM airflow and operates at a sound level of 82 decibels. You can choose between single - phase 220 - volt or three - phase 230/460/575 - volt power options, depending on your needs.
