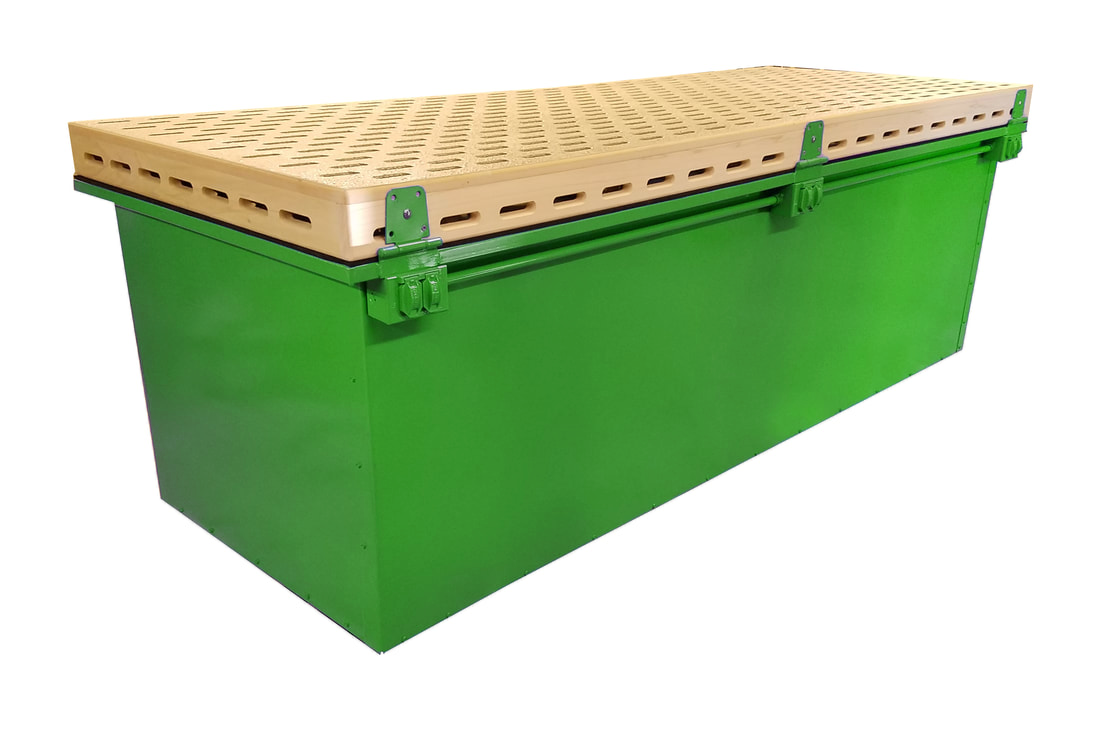

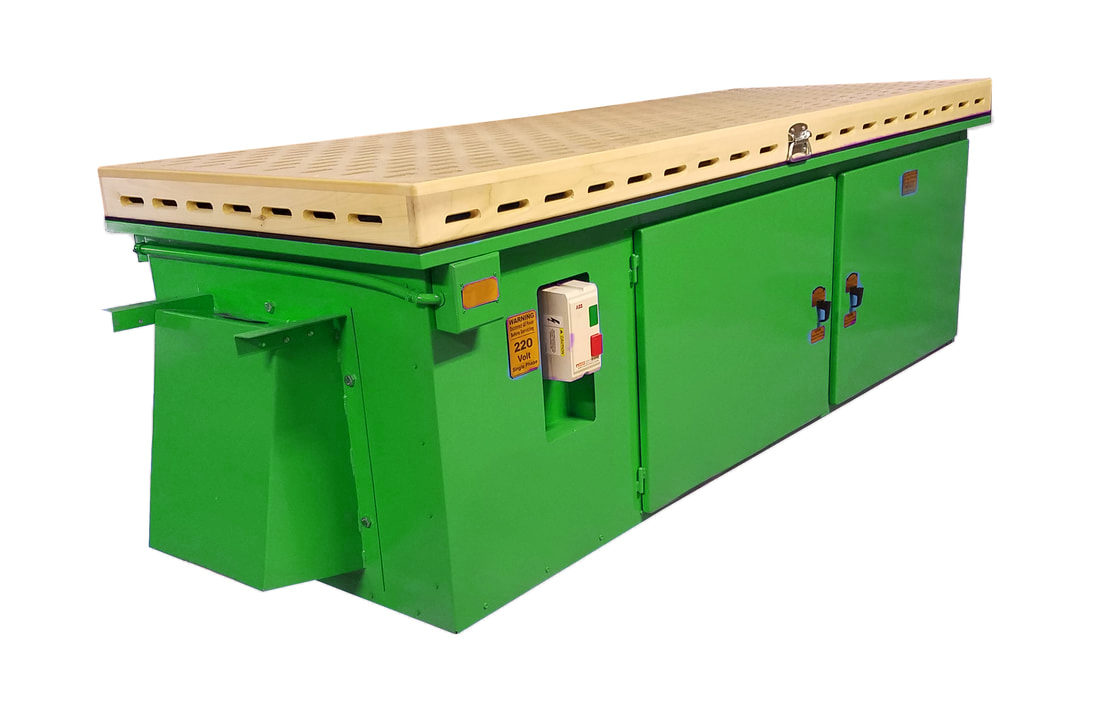

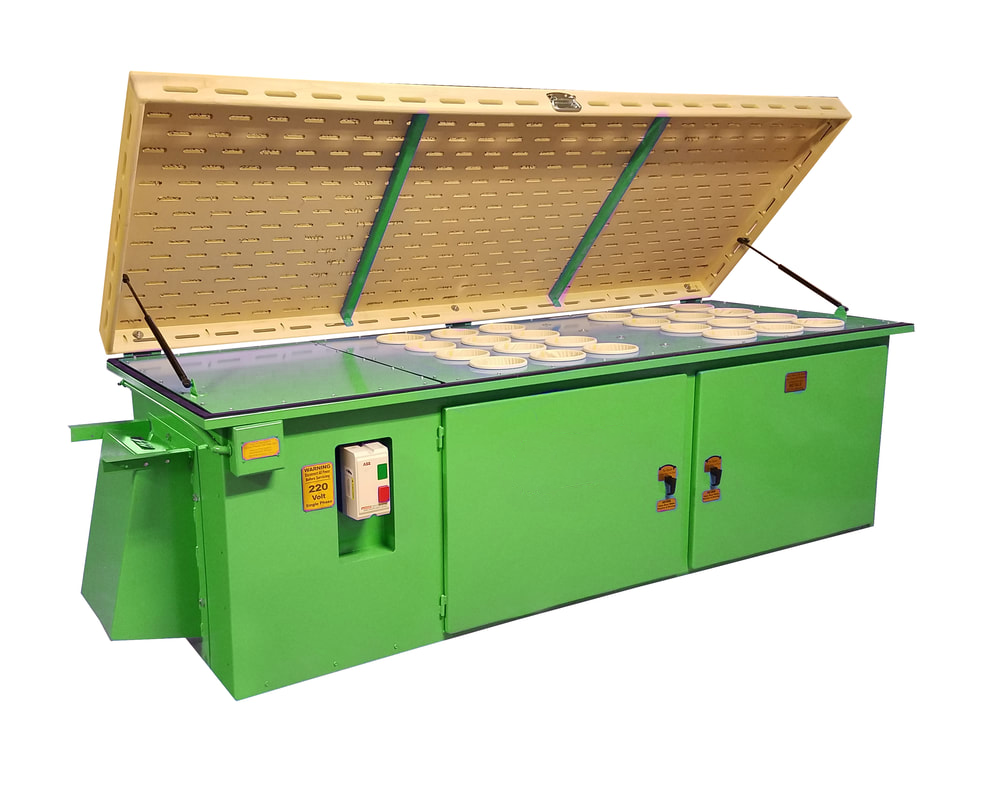

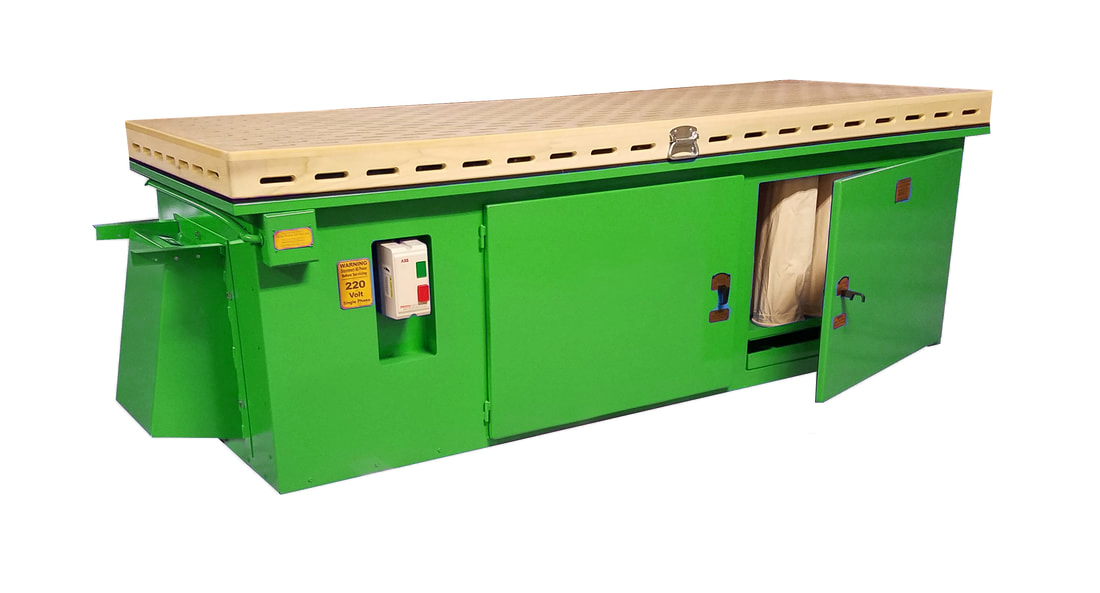

Denray Downdraft Table Model 3696

DUST COLLECTION MINI-BOOTHS

Manufacturer: Denray

Part #: 3696

Description: Denray Downdraft Table with Tube Filtration - A Must-Have for Your Workshop!

• Great for medium-sized jobs
• 99% dust capture rate at 1 micron
• Comes with casters and rubber-coated top

This model is excellent for sanding plastics, woods, and finishing materials. The 3696 model features tube filtration, cleaning with a 99% capture rate at 1 micron, making it perfect for all wood and several other airborne dust applications. It also comes standard with casters and a rubber-coated top.

• 36' x 96'
• 36' HEIGHT
• 2 HP MOTOR
• 3800 CFM
• 78 DECIBELS SOUND LEVEL

SINGLE-PHASE

• 115 VOLTAGE (17.6 AMPS)
• 220 VOLTAGE (8.8 AMPS)

THREE-PHASE

• 230 VOLTAGE (5.8 AMPS)
• 460 VOLTAGE (2.9 AMPS)
• 575 VOLTAGE (2.3 AMPS)

ADDITIONAL OPTIONS

• Explosion Proof Motor (3 Phase only)
• Light Bar
• Muffler (reduces sound level 10 - 12 DBS.)
• Carbon Filter Bank (odor only)
• HEPA Filter bank
• Three-sided Hinged Safety Shield
• Magnehelic Gauge
• HDPE plastic tabletop
• Hydraulic Height Adjustment
• Larger Motor/Fan Upgrade

FOB Mount Vernon, Missouri - You will be contacted with a freight quote or you can arrange your own freight. Forklift required at the time of delivery.

The Denray 3696 Downdraft Table is perfect for medium-sized jobs in workshops. It's great for those who work with plastics, woods, and finishing materials. The table measures 36' x 96' and has a height of 36'. It comes with a 2 HP motor, 3800 CFM, and a sound level of 78 decibels. You can choose between single-phase or three-phase power options. There are also many additional options available to customize it to your needs.
