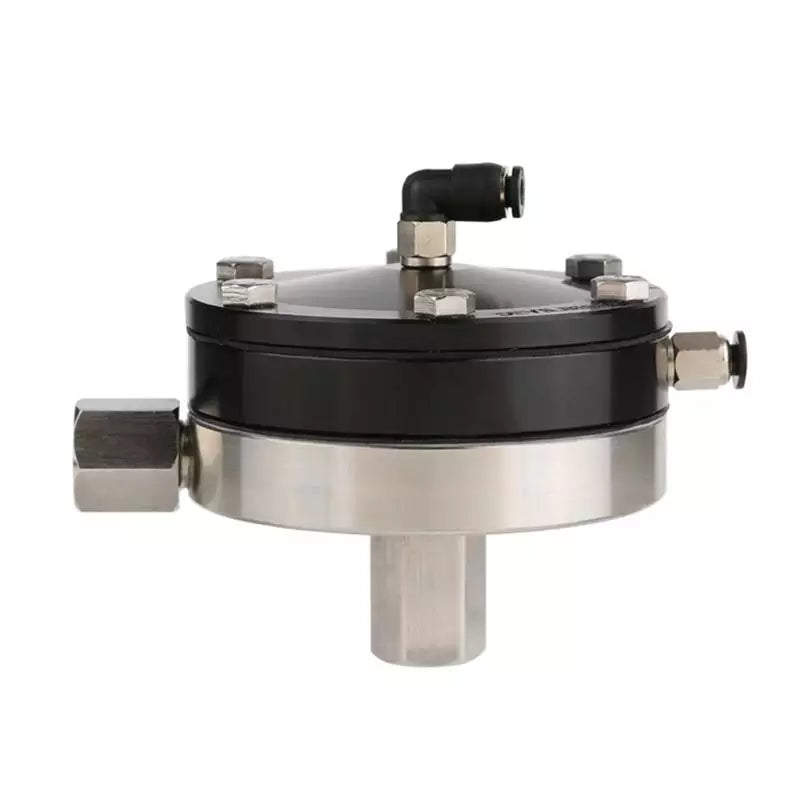

DeVilbiss HGB-510-R2 Low Pressure Fluid Regulator Assembly Air Pilot

Discover the DeVilbiss HGB-510-R2 Low Pressure Fluid Regulator Assembly Air Pilot!

Manufacturer: Carlisle DeVilbiss

Part #: HGB-510-R2

Key Selling Points:

• • High - Quality SST Wetted Parts for Durability
• • Wide Inlet Pressure Range from 15/1 to 220/15 psi/bar
• • Decent Capacity of.35/1.3 gpm/lpm

Specifications:

Wetted Parts:	SST
Inlet/Outlet:	1/4'bsp (f) 1/4'bsp(f)
Inlet Pressure Min. (psi/bar):	15/1
Inlet Pressure Max. (psi/bar):	220/15
Outlet Pressure Max (psi/bar):	100/7
Capacity (gpm/lpm):	.35/1.3

The DeVilbiss HGB-510-R2 low pressure fluid regulator assembly air pilot is perfect for industrial settings where precise fluid regulation is needed. It's great for technicians and engineers who work with fluid systems. The regulator has wetted parts made of SST, with inlet and outlet of 1/4'bsp (f). It can handle an inlet pressure from 15 psi/1 bar to 220 psi/15 bar and has a maximum outlet pressure of 100 psi/7 bar. With a capacity of.35 gpm/1.3 lpm, it's a reliable choice for your fluid regulation needs.
