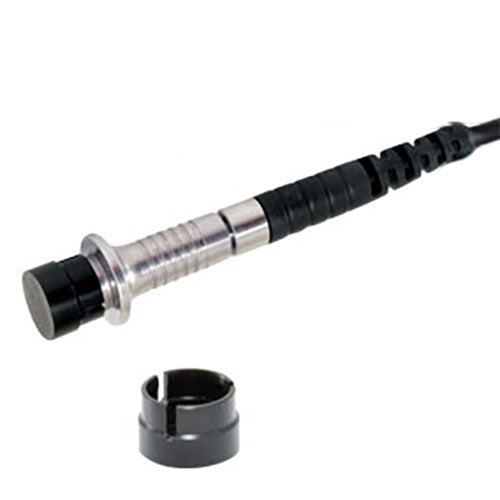

Elcometer 456 Ultra Scan Probe: Your Ultimate Solution for Ferrous Metal Coating Inspection
Manufacturer: Elcometer
Part #: T456CF2U
Description: This amazing probe is designed to work seamlessly with our Top Ferrous or Top Dual FNF Elcometer 456 Separate Gauges.

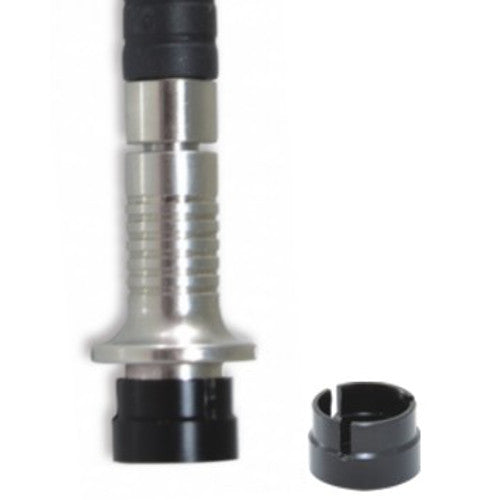

• Highly Durable Design: Features a 'snap on' replaceable probe cap, protecting both the probe and the coating.
• Rapid Scanning: With a reading rate over 140 readings per minute, it can quickly inspect large coated areas.
• Time-Saving: When used with the Elcometer 456 Model T in Auto Repeat Mode, it can complete SSPC PA2 tests over 40% faster.
Specifications:
- Range: 0 - 200 mils (0 - 5mm)
- Accuracy: ±1 - 3% or ±1 mil (±.02mm)
- Resolution: 0.1mil: 0 - 50mils; 1mil: 50 - 200mils (1µm: 0 - 1mm; 10µm: 1 - 5mm)
- Minimum headroom: 85mm (3.50')
- Minimum sample diameter: 5mm (0.59')
End Caps
Data Sheet
The Elcometer 456 Ultra Scan Probe is perfect for inspecting coatings on ferrous metal substrates. It's ideal for professionals in the coating inspection industry, like quality control inspectors and contractors. You can use it in various settings, such as factories, construction sites, and warehouses. The probe has a measuring range from 0 to 200 mils (0 to 5mm), and it needs a minimum headroom of 85mm and a minimum sample diameter of 5mm.
