Ultra-Containment Berm® - The Ultimate Solution
Manufacturer: UltraTech
Part Number: See Table
Description: Discover the game-changing Ultra-Containment Berm! With its unique living hinge design, enjoy hands-free drive in/drive out, no more manual endwall adjustments!
Get the perfect blend of convenience and economy for capturing leaks and spills during equipment maintenance or drum transportation.
Top 3 Core Selling Points:
- • Hands-free operation: No need to manually raise or lower end walls
- • Automatic wall recovery: Walls spring back upright after vehicle entry/exit
- • Versatile containment: Ideal for drums, vehicles, equipment and more
Features:
- No need to manually raise or lower the end walls.

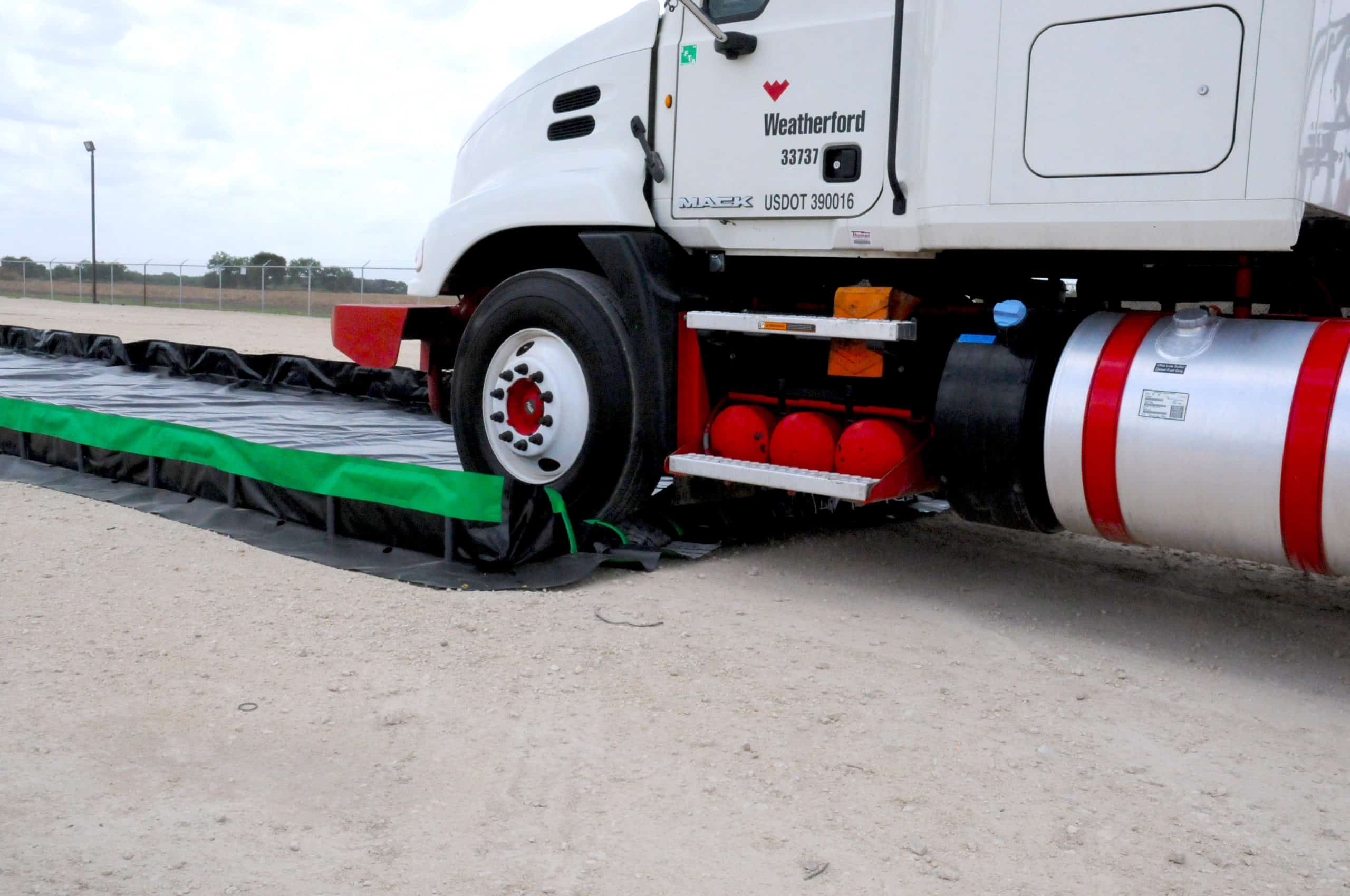

- Once a vehicle has entered or exited, the walls automatically spring back to their vertical position.
- Both long sidewalls are held upright by PVC sidewall assemblies. Simply swivel the feet to lower the sidewalls for storage or transport to another location.

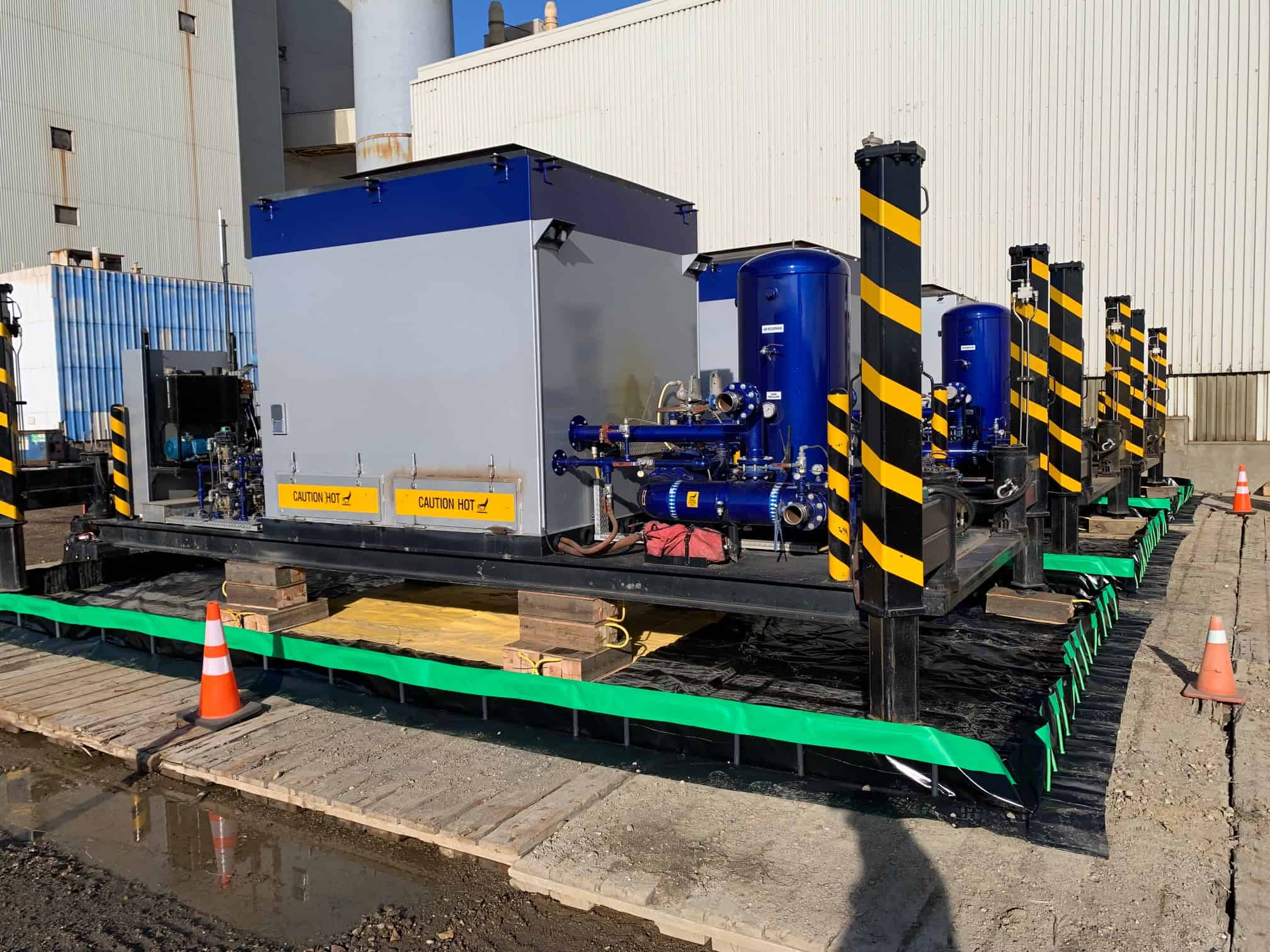

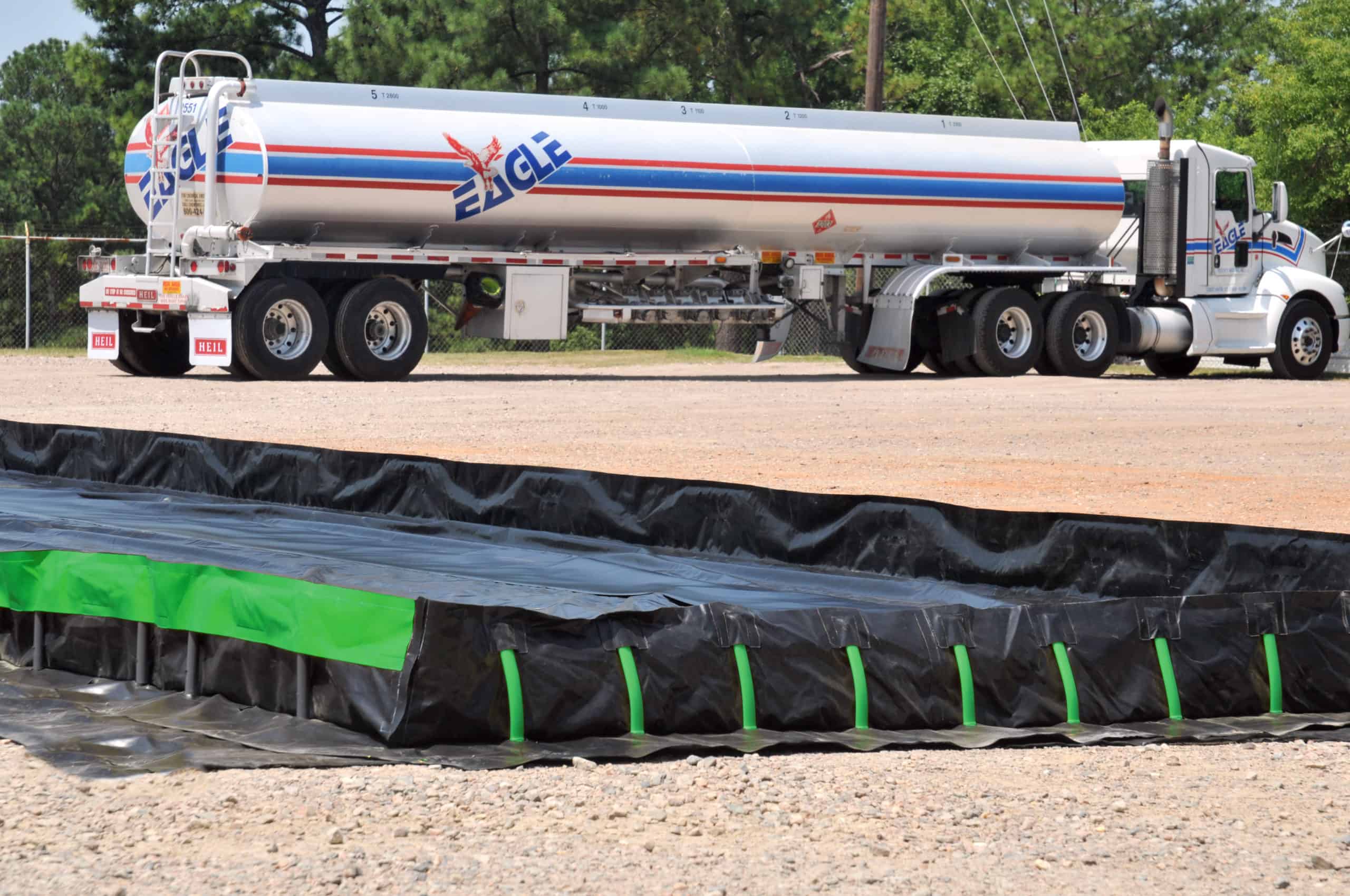

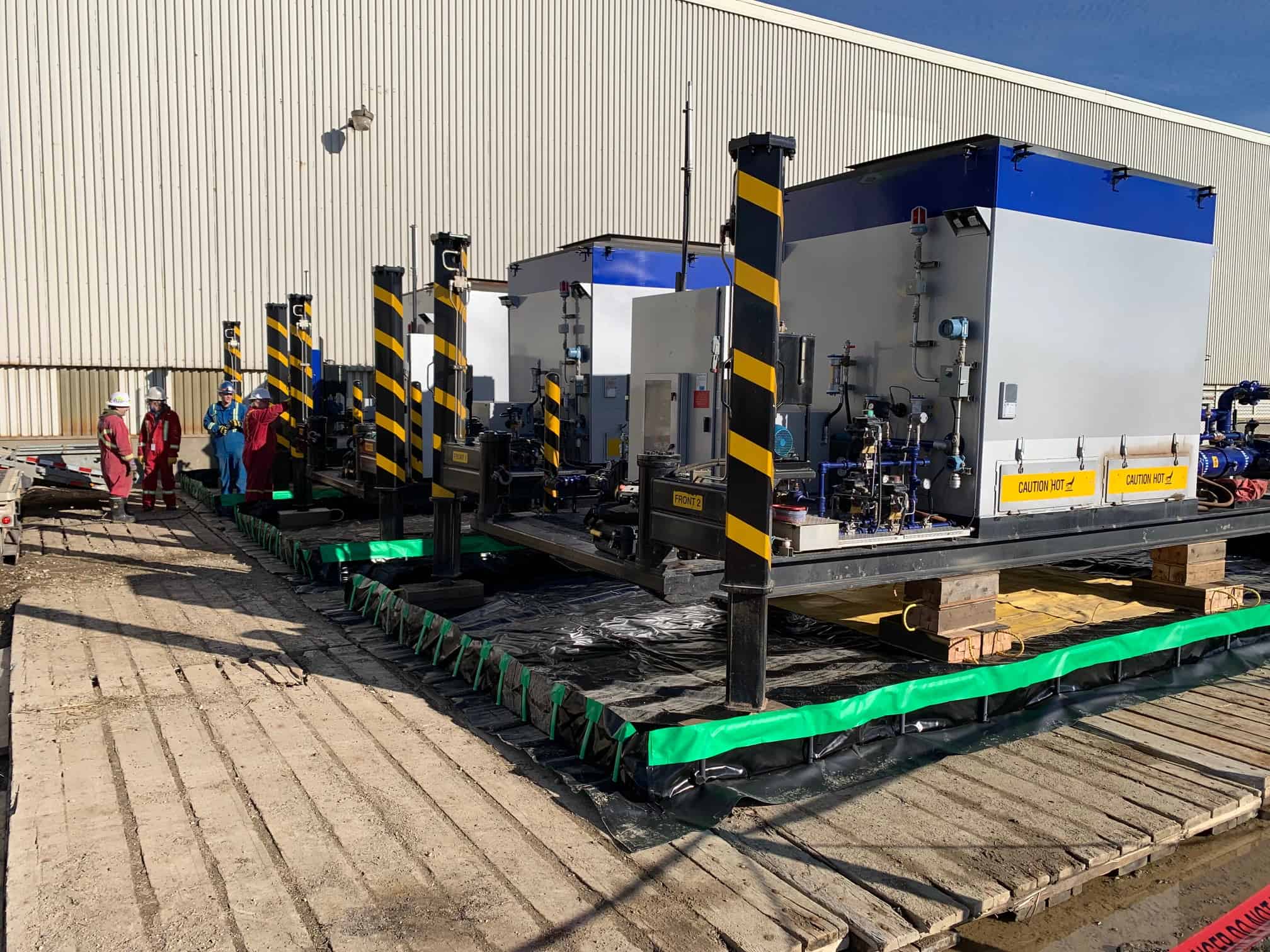

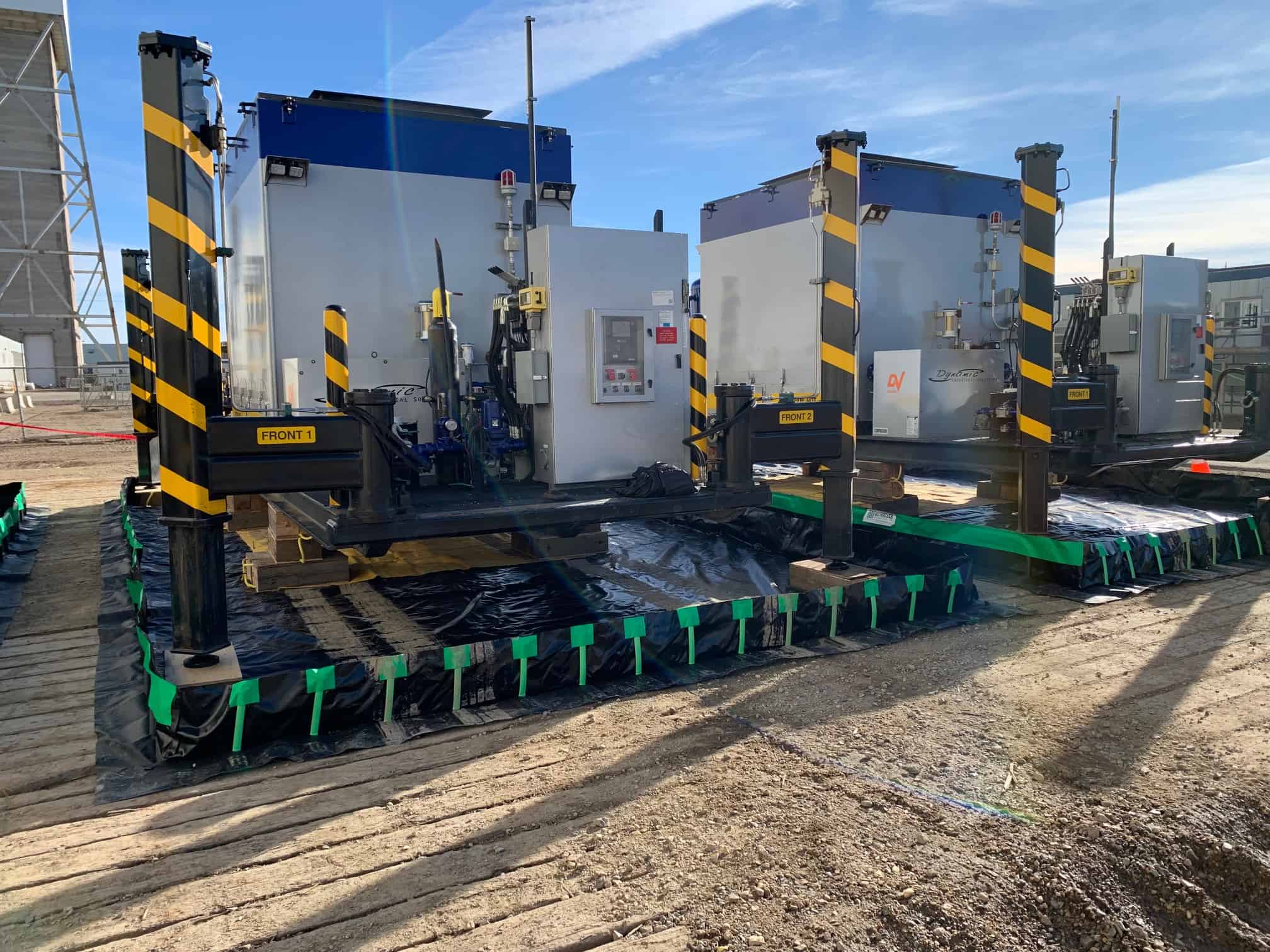

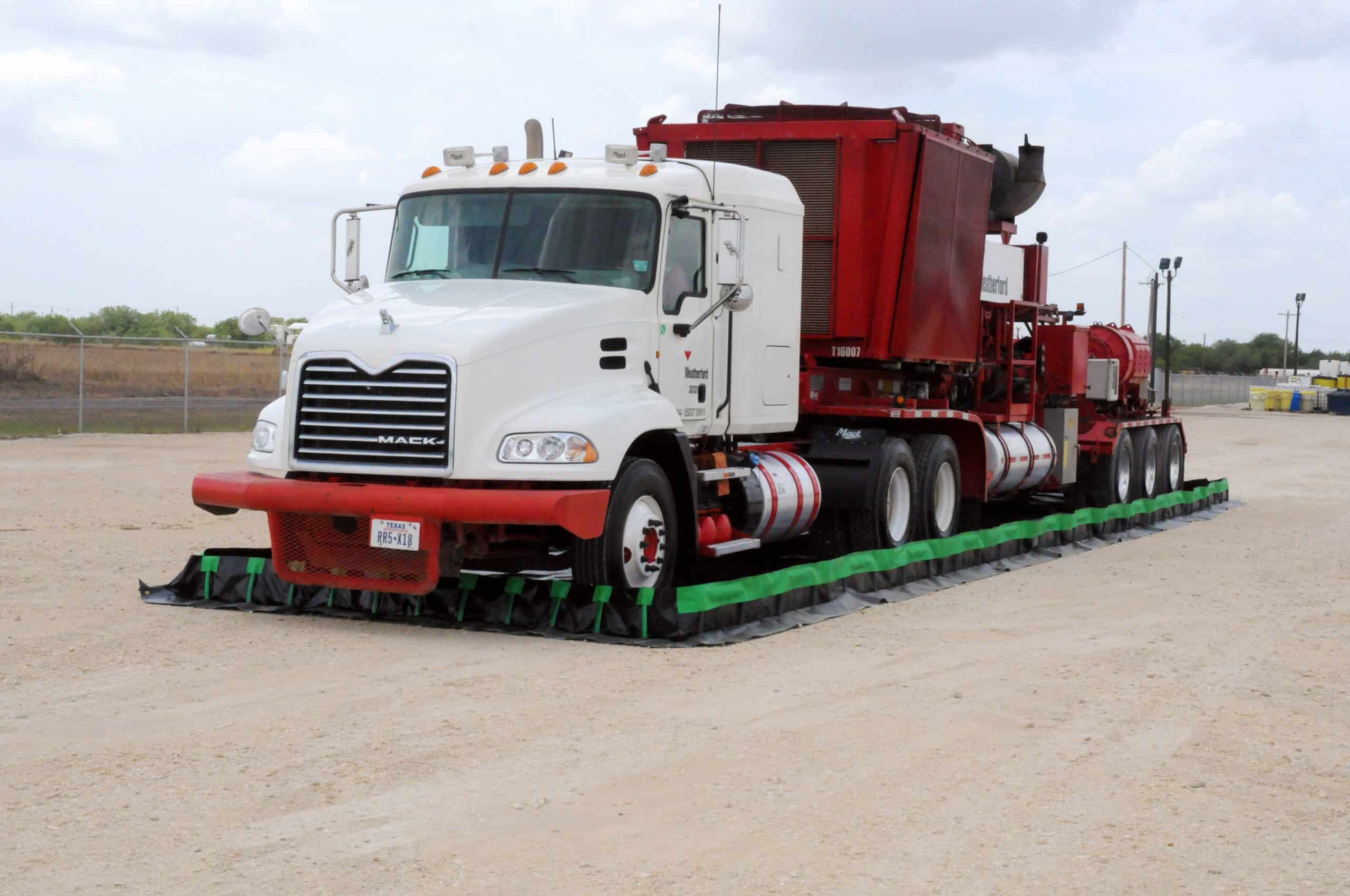

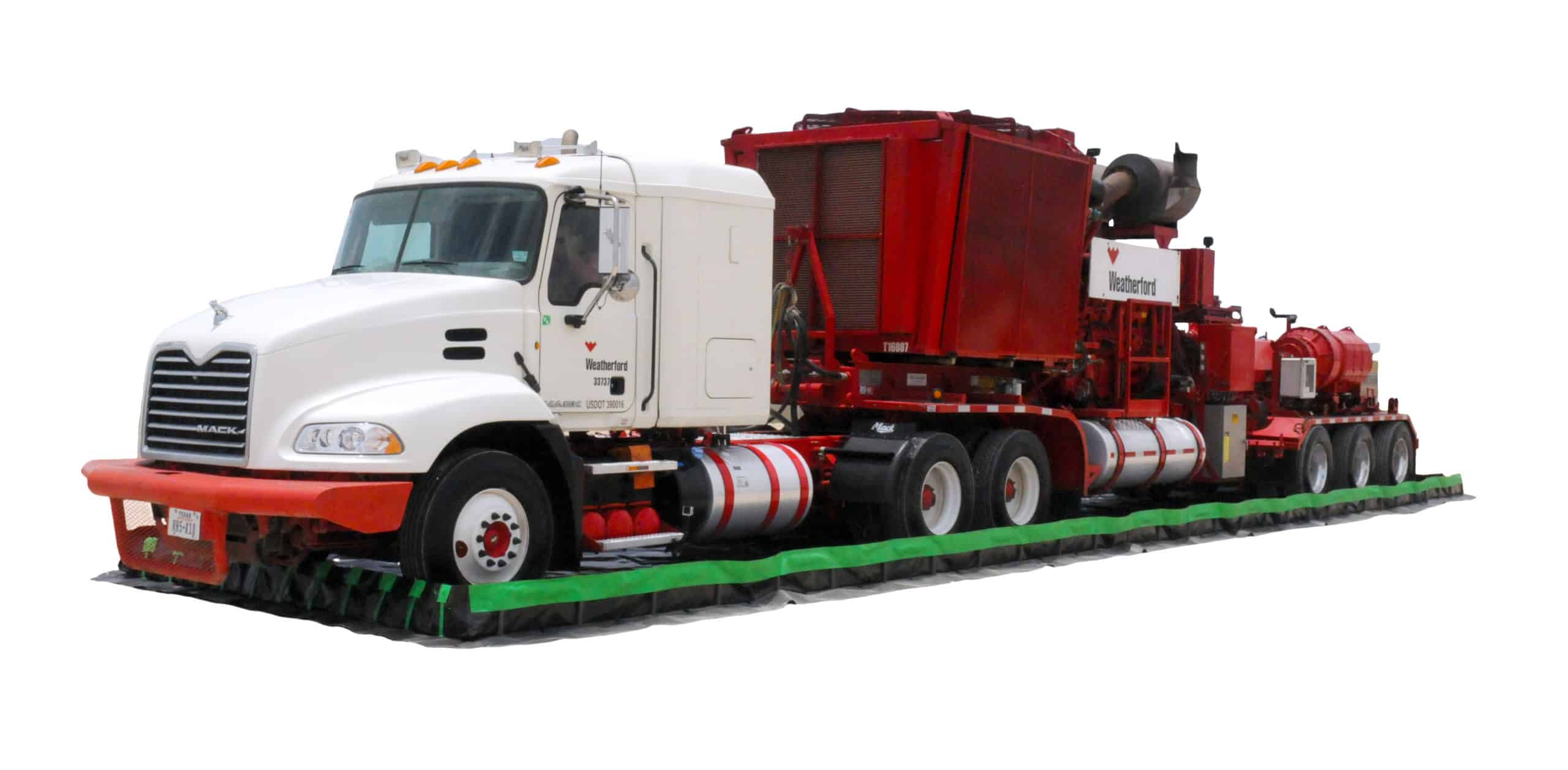

- Convenient and economical spill containment for drums, IBCs, vehicles, equipment, frac tanks, and other large containers.
- Available in Copolymer 2000™
Specifications:
| Part No. | Dimensions ft. (m) | Containment Capacity gal. (L) | Weight lbs. (kg) |
| 8500 | 4 x 6 x 1 (1.2 x 1.8 x .3) | 179 (677) | 72 (32.7) |
| 8501 | 10 x 10 x 1 (3.0 x 3.0 x .3) | 748 (2831) | 176.0 (79.8) |
| 8502 | 12 x 26 x 1 (3.7 x 7.9 x .3) | 2,333 (8,831) | 189.0 (85.7) |
| 8505 | 60 x 12 x 1 (18.3 x 3.7 x .3) | 5385 (20384.4) | 297.0 (134.5) |
| 8506 | 50 x 15 x 1 (15.2 x 4.6 x .3) | 5610 (21236.2) | 326 (147.9) |
| 8507 | 66 x 15 x 1 (20.1 x 4.6 x .3) | 7405 (28031) | 405 (183.7) |
| 8508 | 14 x 54 x 1 (4.3 x 16.5 x .3) | 5,655 (21,406) | 368 (166.9) |
| 8509 | 12 x 36 x 1 (3.7 x 11 x .3) | 3,231 (12,230) | 283.0 (128.4) |
| 8510 | 14 x 56 x 1 (4.3 x 17.1 x .3) | 5,864 (22,197) | 408.0 (185.1) |
Parts and Accessories:
- 8389 - Ultra-Berm Repair Kit
- 8XXX - UltraTech Ground Tarps & Track Belts
You will be contacted with a freight quote for shipping
The UltraTech Ultra-Containment Berm is a must - have for those dealing with equipment maintenance or transporting containment drums. It's great for industrial workers, facility managers, and anyone who needs to prevent spills. You can use it in workshops, warehouses, or during transportation. It comes in various sizes, like 4x6x1 ft (1.2x1.8x.3 m) to 66x15x1 ft (20.1x4.6x.3 m), and weights range from 72 lbs (32.7 kg) to 408 lbs (185.1 kg), so you can choose the one that fits your needs best.
