Binks AG-364 Spare Parts
Manufacturer: Carlisle Binks
Part #: See below

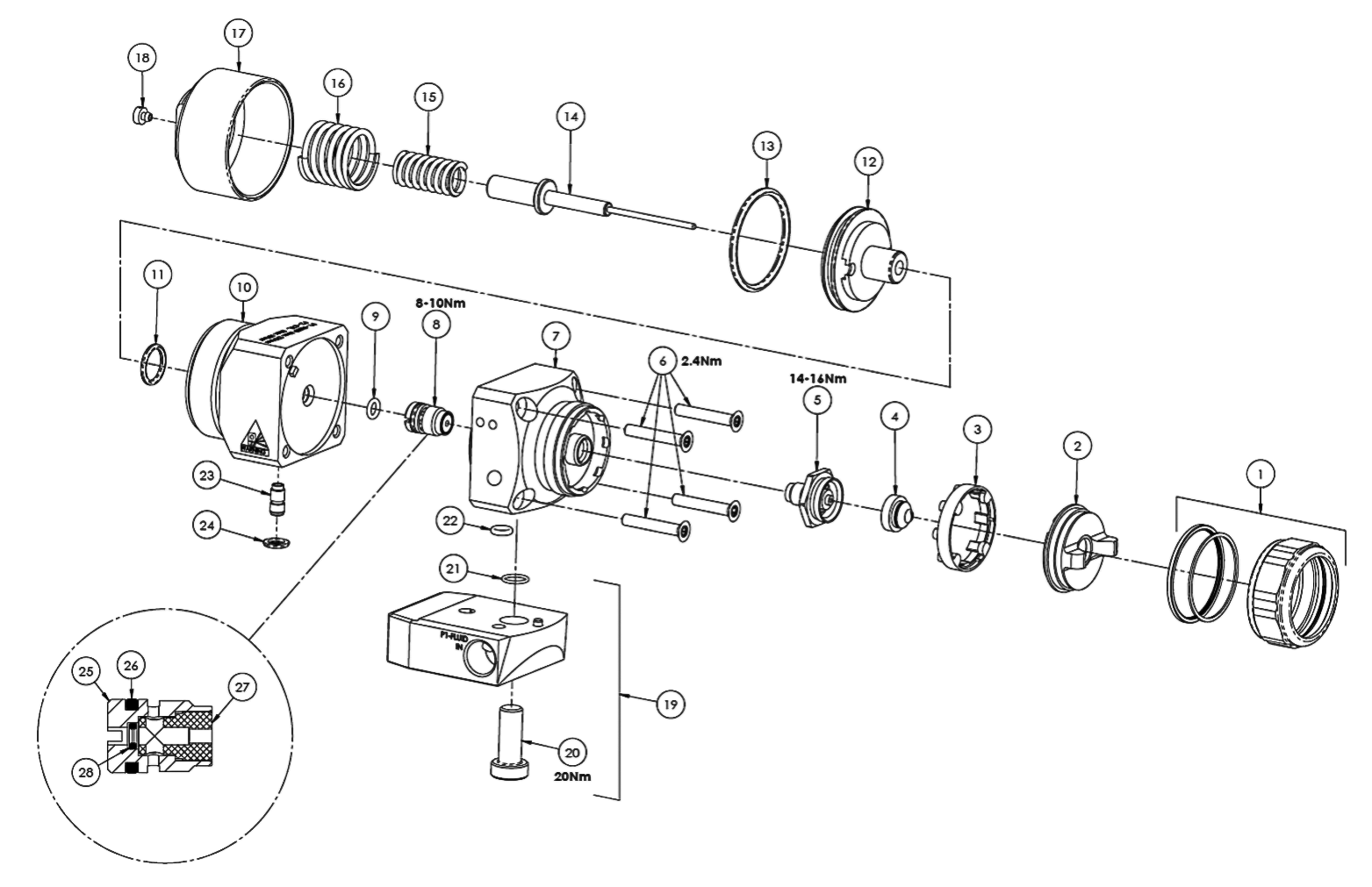

Description: See list below for reference number, part number, and description. Fluid tips (#4) are purchased separately and are linked in the description.
Manual
Major overhaul service kits and soft seal service kits are listed at the bottom
| Ref. | Part# | Description |
| 1 # | 54-6029-K | Retaining Ring with Seals |
| 2 # | SPA-6031-K | Tip Holder |
| 3 | SPA-70-K10 | Index Plate (Kit of 10) |
| 4 | See Table | Standard Tips or Fine Finish Tips |
| 5 # | SPA-69-K | Needle Seat Assembly |
| 6 | S-14190-K4 | Torx Screw (Kit of 4) |
| 7 | SPA-190-K | Sprayhead |
| 8 * # | SPA-76 | Needle Packing |
| 9 * | S-28219X-K4 | O-Ring (Kit of 4) |
| 10 | SPA-191-K | Body |
| 11 * | S-28220X-K2 | O-Ring (Kit of 2) |
| 12 # | SPA-68-K | Piston |
| 13 * # | SPA-45X-K2 | O-Ring (Kit of 2) |
| 14 | SPA-79 | Fluid Needle |
| 15 # | SPA-77 | Needle Spring |
| 16 # | SPA-13 | Piston Spring |
| 17 | SPA-67-BL-K | End Cap |
| 18 | SPA-54 | Vent Cap |
| 19 | SPA-428-K | Screw Manifold Assembly |
| SPA-428U-K | Recirculation Screw Manifold Assembly |
| 20 # | SPA-161-K2 | Clamping Screw (Kit of 2) |
| 21 # | N/A | O-Ring (Part of Clamping Screw Kit, Ref.#20) |
| 22 * | SN-71X-K2 | O-Ring |
| 23 # | SPA-52 | Air Tube |
| 24 * | S-28223X-K4 | O-Ring (Kit of 4) |
| 25 | N/A | Housing (Part of Needle Packing, Ref.#8) |
| 26 | SPA-29X-K4 | O-Ring (Kit of 4) |
| 27 | SPA-96-K4 | Seal |
| 28 | SPA-46X-K4 | O-Ring (Kit of 4) |
| KK-4588 | Soft Seal Service Kit - Includes all items marked by * |
| KK-4589 | Major Overhaul Service Kit - Includes all items marked by # |
These Binks AG - 364 spare parts are perfect for those who use Binks AG - 364 equipment in their work, like painters or maintenance workers. You can use them when your equipment breaks down or needs an upgrade. Although specific size and weight details aren't given, you can be sure that Carlisle Binks makes them to fit your Binks AG - 364 just right. With a wide range of parts from springs to seals, you'll find what you need to keep your machine running smoothly.
