SATA Filter Series 200

SATA Filter Series 200 - Revolutionize Your Air Quality!

Manufacturer: SATA

Part #: 43752, 44404, 141226, 189290, 141218

Description: Discover the economical combi fine filter unit that meets the highest air quality requirements for paint application and air - supplied breathing systems. Ideal for spray booths, prep decks, and other workshop areas.

Core Selling Points:

• • Excellent Air Quality: Removes oil, water, and particles for a cleaner workspace
• • User - Friendly: Easy to maintain, saving you time and effort
• • High - Capacity Air Flow: 2,000 Nl/min can supply two spray guns with clean air

Options Available:

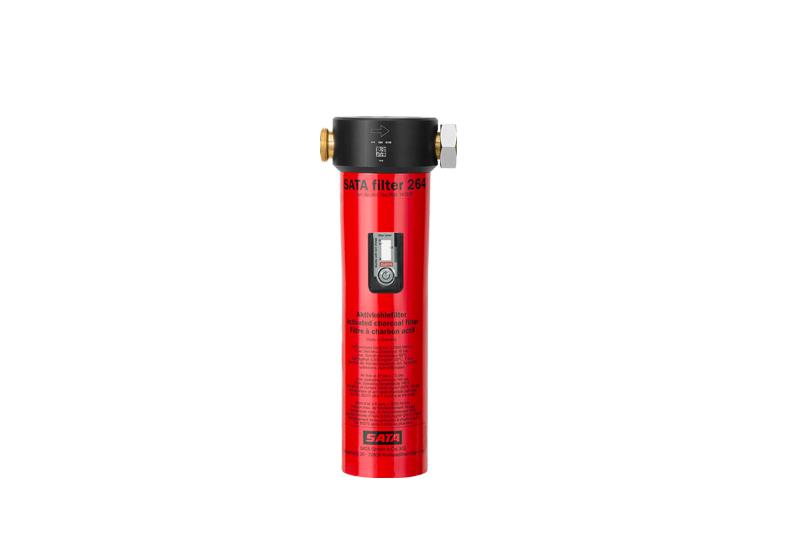

• (141226) - SATA filter 264 single - stage activated charcoal filter to retrofit SATA filter 244 to SATA filter 284
• (43752) - SATA filter 242 L double - stage sinter filter/fine filter without pressure regulator, for pipeline installation (G 1/2' female thread)

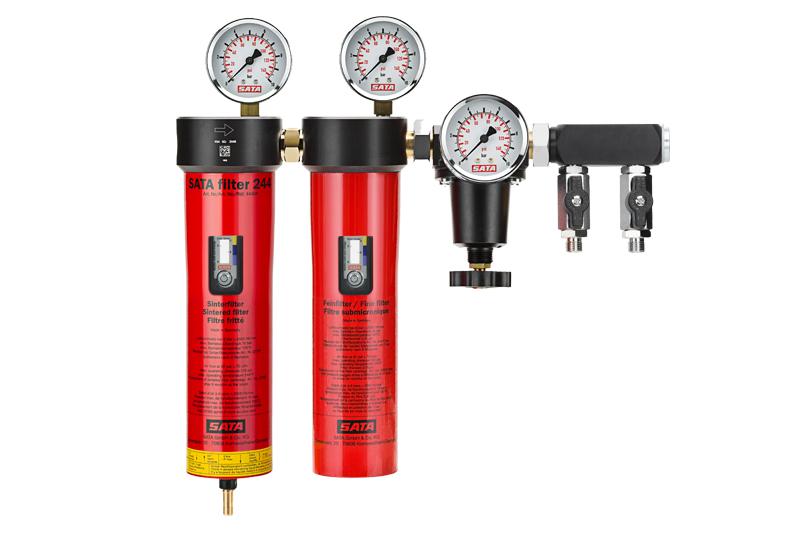

• (44404) - SATA filter 244 double - stage sintered filter/fine filter, pressure regulator, outlet module (2 x air coupling/nipple 9 mm)
• (189290) - SATA filter 284 L 3 - stage sinter filter/fine filter/activated charcoal filter, for air circuit installation (G 1/2' female thread)

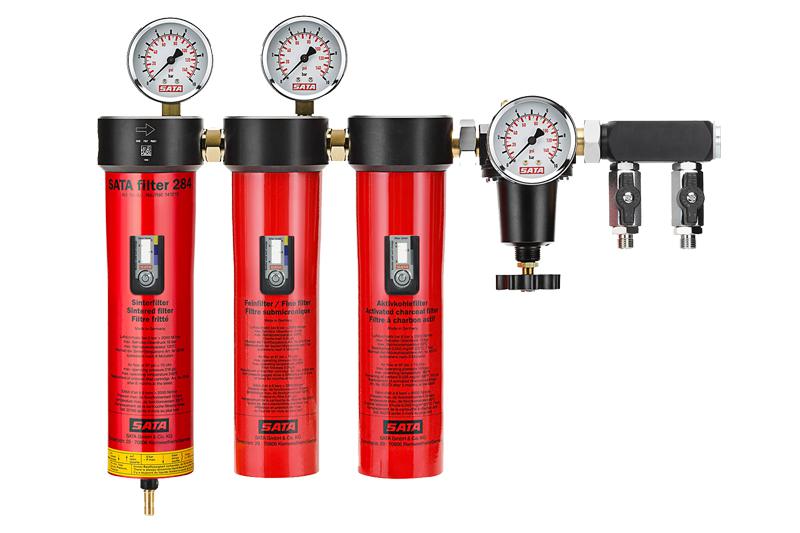

• (141218) - SATA filter 284 triple - stage sintered filter/fine filter/activated charcoal filter, pressure regulator, outlet module (2x air coupling/nipple 9 mm)

Parts and Accessories:

• Premo Flex Hose
• 22160 - Sintered Bronze Cartridge
• 81810 - Fine Filter Cartridge
• 85373 - Activated Charcoal Cartridge

Literature:

• Manual

Log In or Register to See Pricing

Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won't be covered under SATA's warranty.

The SATA Filter Series 200 is designed for use in spray booths, prep decks, and other workshop areas. It's perfect for painters, workshop technicians, and anyone who needs high - quality air for their work. The air inlet has a G 1/2' female thread and the air outlet has a 1/4' male thread. With an air flow of 2,000 Nl/min, it can supply two spray guns at the same time. This filter is easy to use and maintain, making it a great choice for your workspace.
