Get Peace of Mind with One-Piece Spill Containment Decks for 6 or 8 Drums!

The Ultra-Spill Decks have rapidly become a top - seller in our product line. Their modularity is a huge plus, but if you prefer simplicity, the Ultra - Spill Deck P6 and P8 are your best bet.

• Simple Design: No need to screw bulkhead fittings or connect additional modules. It's a single - piece sump with separate grating on top.
• Versatile Use: Ideal for satellite collection of hazardous wastes or storage of virgin chemicals.
• High Capacity: Each drum can hold up to 1,500 lbs. of uniformly distributed load.

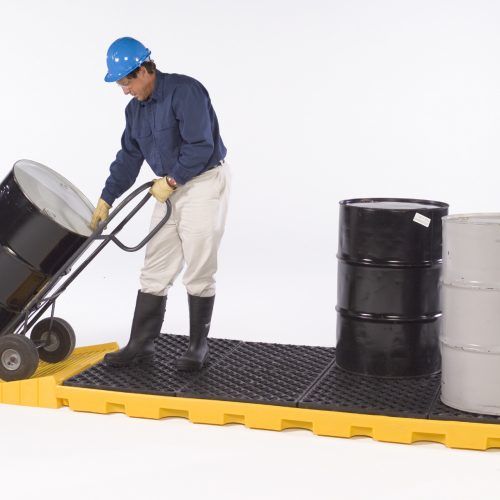

Just unload it from the truck, load your drums, and rest assured your facility is protected from leaks, drips, and spills.

Product Highlights

• Available in 6 - drum and 8 - drum models, perfect for waste collection and chemical storage.

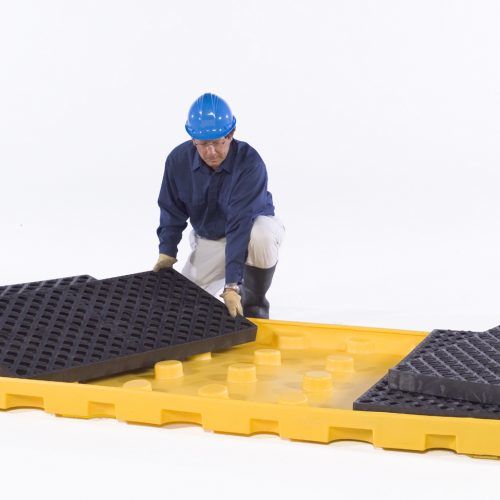

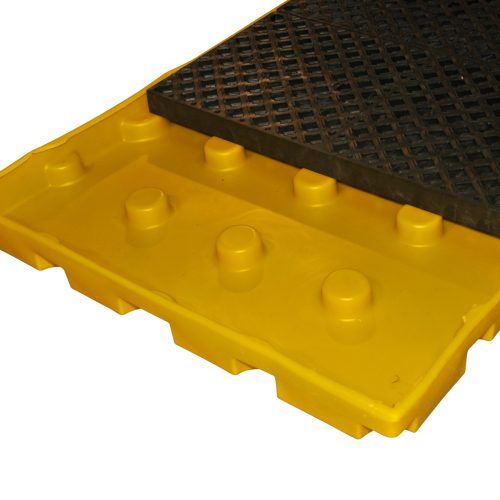

• One - piece, molded sump with elevated 2’ x 4’ black grates.
• Polyethylene grates with a slip - resistant, ”diamond plate” surface design.
• The deck holds up to 1,500 lbs. per drum UDL (uniformly distributed load).
• Designed for use with Ultra - Spill Deck Loading Ramp (Part# 1089).

Part #	Model	Dimensions in. (mm)	Weight Capacity UDL (lbs)	Containment Capacity gal. (L)	Weight lbs. (kg)
1175	P6 Model	74.3 x 50 x 5.3 (1886 x 1270 x 133.4)	9000 (4082.3)	66 (249.8)	86 (39)
1075	P8 (8 - Drum)	98.5 x 50 x 5.3 (2501.9 x 1270 x 133.4)	12000 (5443.1)	75 (283.9)	110 (49.9)

Parts -

1089 - Loading Ramp

The Ultra - Spill Deck P6 and P8 are spill containment decks designed for facilities that need to store 6 or 8 drums. They're great for industries dealing with hazardous waste collection or virgin chemical storage. The P6 model measures 74.3 x 50 x 5.3 inches (1886 x 1270 x 133.4 mm), weighs 86 lbs (39 kg), and can hold 9000 lbs (4082.3 kg) of uniformly distributed load with a containment capacity of 66 gallons (249.8 L). The P8 model is larger, measuring 98.5 x 50 x 5.3 inches (2501.9 x 1270 x 133.4 mm), weighing 110 lbs (49.9 kg), and can hold 12000 lbs (5443.1 kg) with a containment capacity of 75 gallons (283.9 L). They're easy to use right out of the box, just load your drums and you're good to go.
